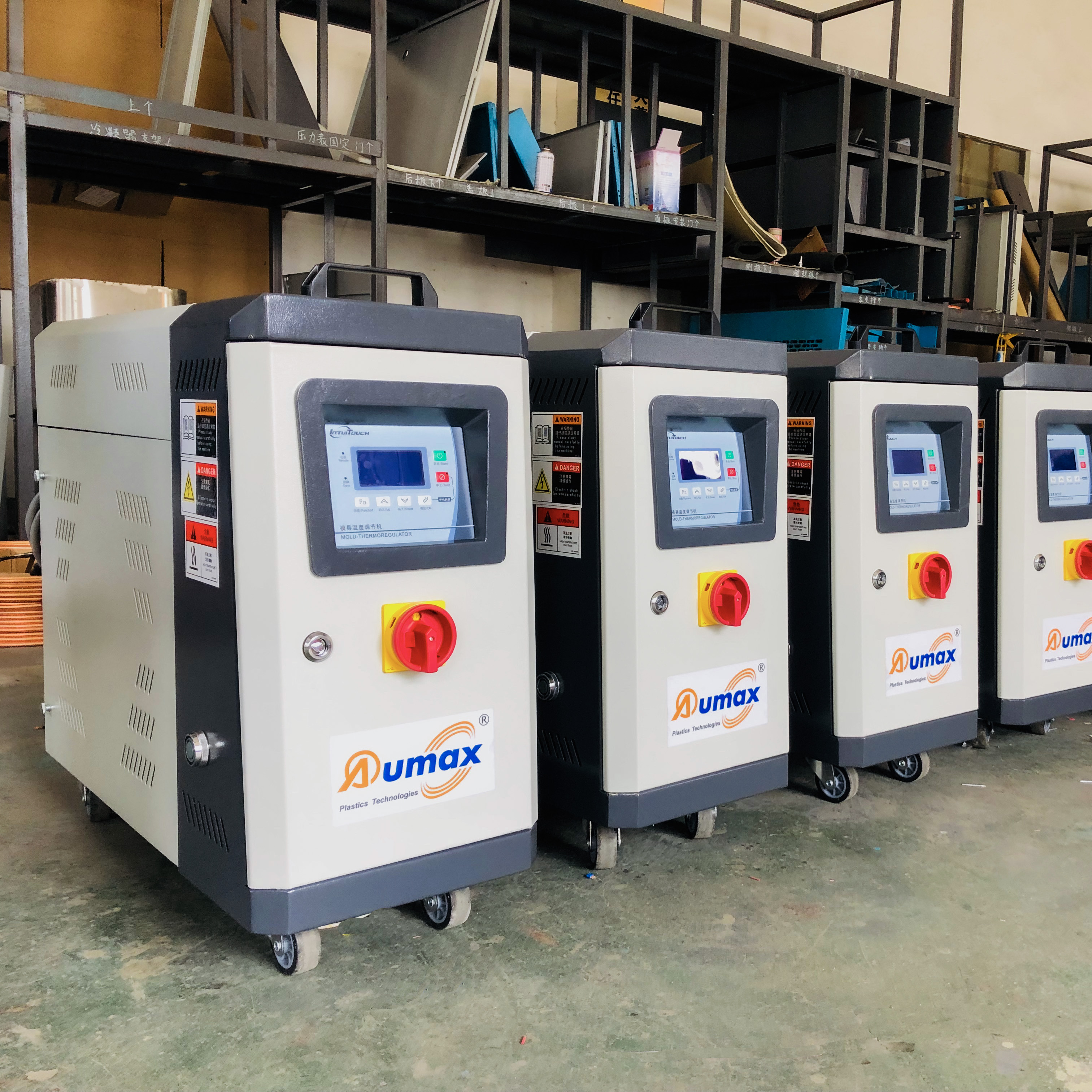

Mold Temperature Controller
AMTC-6-W AMTC-9-W AMTC-12-W AMTC-6-WD AM-9-WD AMTC-12-WD AMTC-6-O AMTC-9-O WMTC-12-O AMTC-6-OD AMTC-9-OW AMTC-12-OD
Product details
Specification:
| Name | Mold Temperature Controller / Mold Thermoregulator | ||||||||||||
| Heating Type | Water Type | Oil Type | |||||||||||
| Model | AMTC-6-W | AMTC-9-W | AMTC-12-W | AMTC-6-WD | AMTC-9-WD | AMTC-12-WD | AMTC-6-O | AMTC-9-O | AMTC-12-O | AMTC-6-OD | AMTC-9-OD | AMTC-12-OD | |
| Maximum Temp. | 120℃ | 200℃ | |||||||||||
| Cooling Method | Direct Cooling | Indirect Cooling | |||||||||||
| Heater Power | KW | 6 | 9 | 12 | 6x2pcs | 9x2pcs | 12x2pcs | 6 | 9 | 12 | 6x2pcs | 9x2pcs | 12x2pcs |
| Pump Power | KW | 0.37 | 0.75 | 1.5 | 0.37x2pcs | 0.75x2pcs | 1.5x2pcs | 0.37 | 0.75 | 1.5 | 0.37x2pcs | 0.75x2pcs | 1.5x2pcs |
| Max. Flowrate | L/min | 35 | 60 | 90 | 35x2 | 60x2 | 90x2 | 35 | 60 | 90 | 35x2 | 60x2 | 90x2 |
| Max. Pressure | Bar | 3 | 4.5 | 4.5 | 3 | 4.5 | 4.5 | 3 | 4.5 | 4.5 | 3 | 4.5 | 4.5 |
| Mold Connector Size | Inch | 3/8" (2x2) | 3/8" (2x2) | 3/8" (4x2) | 3/8" (4x2) | 3/8" (4x2) | 1" (2x2) | 3/8" (2x2) | 3/8" (2x2) | 3/8" (4x2) | 3/8" (4x2) | 3/8" (4x2) | 1" (2x2) |
| Weight | kg | 490 | 530 | 600 | 1050 | 1150 | 1250 | ||||||
| Dimensions: | |||||||||||||
| L | mm | 900 | 900 | 1000 | 900 | 900 | 1000 | 900 | 900 | 1000 | 900 | 900 | 1000 |
| W | mm | 315 | 315 | 350 | 650 | 650 | 720 | 315 | 315 | 350 | 650 | 650 | 720 |
| H | mm | 700 | 700 | 900 | 700 | 700 | 700 | 700 | 700 | 900 | 700 | 700 | 700 |
Please excuse for not note if some specifications of products are changed.
Note：
1）"W" means water type; "O" means oil type; "D" means Double units (2-in-1) type.
2）The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
Application:
AMTC Series mold temperature controllers are mainly used to heat plastic injection mould and keep the mold temperature in a stable range. Use water or oil as intermediary, equipped with special designed heating and cooling unit, AMTC machine provide a stable temperature for plastic injection mould. The water type mould temperature controller can provide maximum temperature at 120℃; while oil type mold temperature controller can provide maximum temperature at 200℃.
Features:
Micro PLC with PID temperature controller provide a high precision temperature, easy to operate.
Horizontal type water pump and oil pump provide a stable performance.
Cylindrical type heating unit with high pressure resistance and explosion proof.
Automatic alarm system, stop machine when any error happened and give suggestion to solve the problem.
European style appearance, easy to repair and maintenance.
Both water type and oil type for option.
