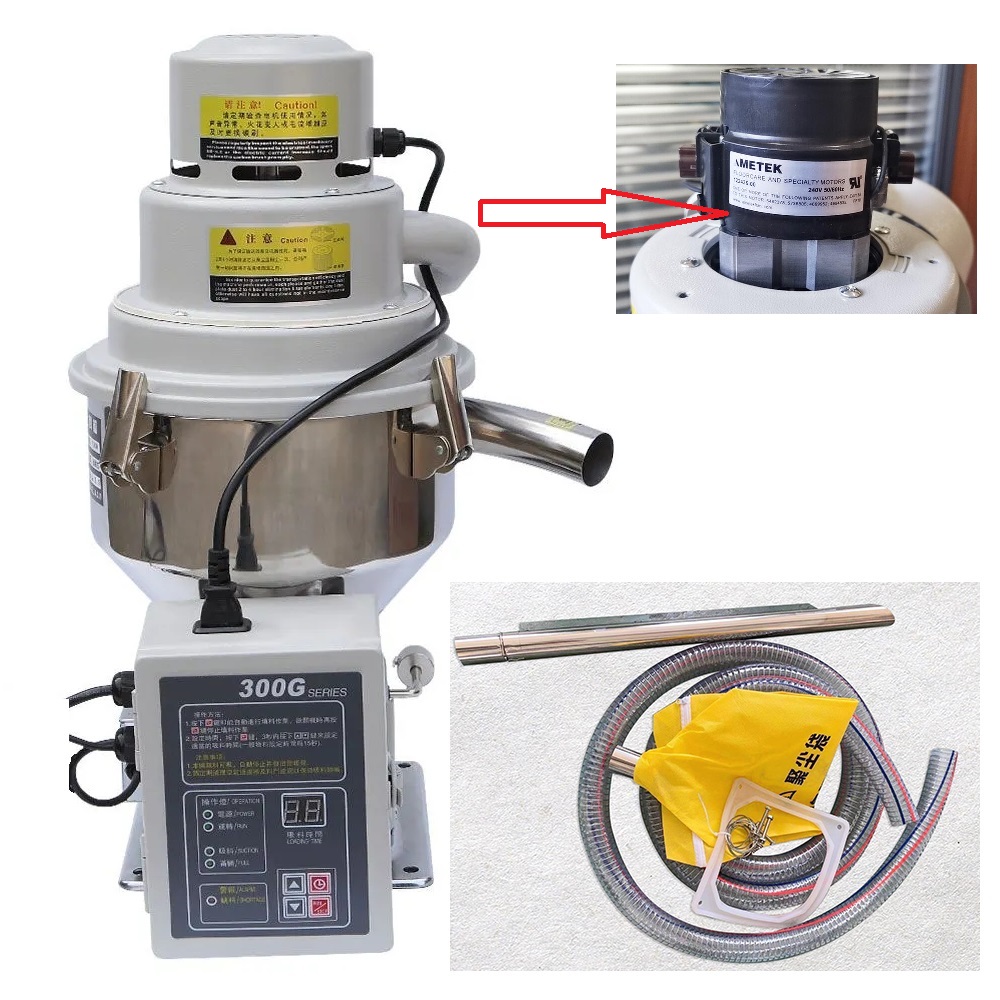

Self-contained Vacuum Autoloader (Single-phase)
AM-300G
Product details
Specification:
Model | Motor | Conveying Capacity (Kg/h) | Hopper Capacity (L) | Conveying Pipe diameter (mm) | Dimensions(mm) | Weight (Kg) | |
Type | Power | ||||||
AML-300G | Carbon Brush | 1.5HP/1Phase | 300 | 6 | Ø38 | 550x 400 x350 | 20 |
Please excuse for not note if some specifications of products are changed!
Note:
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage for AML-300G is 1Ø 220V 50/60Hz.
Application:
AML-300G combined autoloader adopt single phase carbon brush motor with superior suction power and easy installation. It is particularly suitable for conveying new materials.
Features:
* Stainless steel hopper and motor overload protective device.
* AML-300G. is equipped with High-speed carbon-brush motor with strong suction force.
* Microprocessor controller for ease of operation and has multiple alarm indicators.
* Equipped with emote controller for convenient setting and operation.
