Product Name:

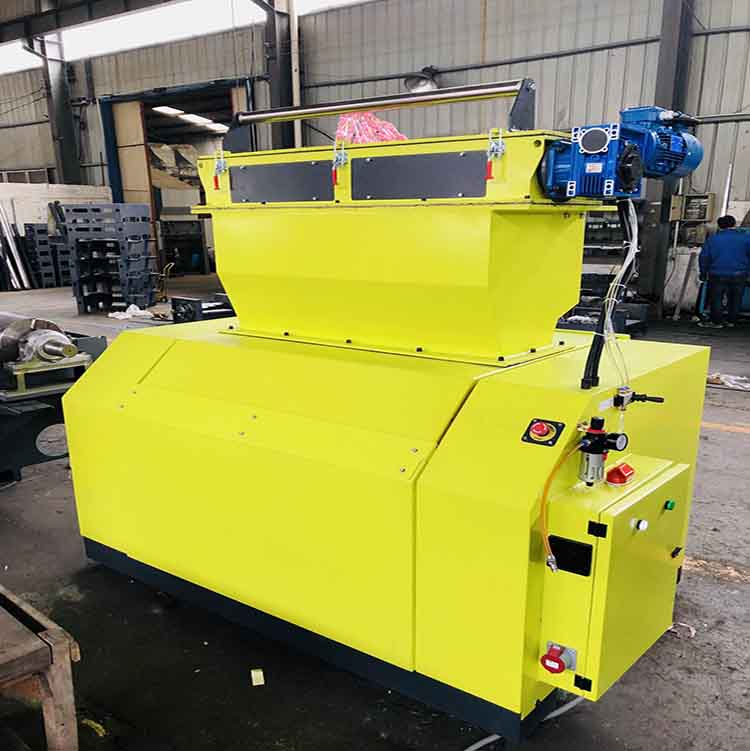

Plastic Film / Sheet Granulator

Model No.:

AMG-600GP AMG-700GP AMG-800GP AMG-1000GP


Product details

Specification:

NamePlastic Film / Sheet Granulator / Plastic Crusher
ModelAMG-2190QAMG-21100QAMG-1200GPAMG-1500GP
Powerkw7.5113745
Rotor Speedrpm560560560560
Rotor Diametermm210210460460
Rotating Bladespcs6666
Fixed Bladespcs4444
Screen Diameter
Ø10Ø10Ø12Ø12
Manual Feeding Mouthmm210x920210x1020400x1200400x1500
Outputkg/h200~400300~600800~1200800~1500
NoisedB(A)70~8570~8580~9580~95
Magnet at Feeding MouthOOOO
Blower Conveying & Cyclone SystemOOOO
Manual Box
Weightkg1300150023002800
Dimensions:
Lmm2230223015601560
Wmm1160136019402240
Hmm1520152028702870

Please excuse for not note if some specifications of products are changed.

Note:

1)"√"is standard configuration," O " is optional to purchase.

2)The output capacity depends on the screen diameter, material thickness and feeding speed.

3) The screen mesh diameter can be made according to customers' request.

4)The running noise depends on varied shredding material.

5)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.


Application:

AMG-GP Series plastic film granulators and plastic sheet crushers are specially designed to crush plastic films and sheets. The machine equipped with two feeding mouth. The auto-feeding mouth adopted speed adjustable gear motor, pneumatic cylinder and roller system for automatic feeding of film and thermo forming plastic sheet rolls. This plastic crusher machine can be installed online of plastic thermoforming production line. The manual feeding mouth are used to feed and crush different hard and soft plastic wastes in different shapes like PET Bottles, PP/PE films, PVC pipes and fittings, plastic blocks, plastic sheets, etc.


Features:

l SKD11 material blades and special designed blades structure insure high efficiency and performance

l Optimized designed bearings block keep dust away, with low running temperature for long life using

l V-shaped blades, Claw blades and Flat blades are optional for different plastic wastes

l Electric motor screw device for opening and closing cutting chamber to save manpower

l Separate structure design for cutting chamber and screen mesh, easy to clean and maintenance

l Safety switch to protect people, overload device to protect motor

l Fixed with shockproof pad to reduce vibration and noise.
