Product Name:

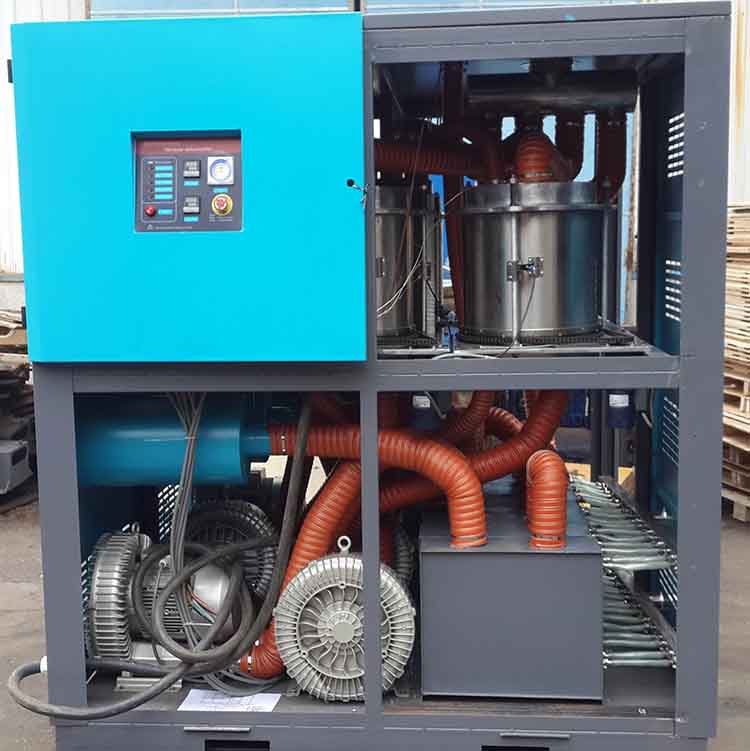

Honeycomb Dehumidifier

Model No.:

AMD-30H AMD-50H AMD-80H AMD-120H AMD-150H AMD-200H AMD-300H AMD-400H AMD-500H AMD-700H AMD-1000H AMD-1500H AMD-2000H AMD-3000H AMD-4000H

Inquire Now Next Product

Product details

Specification:

Name		Honeycomb Dehumidifier
Model	AMD-	30H	50H	80H	120H	150H	200H	300H	400H	500H	700H	1000H	1500H	2000H	3000H	4000H
Dry Air Capacity	m3/h	30	50	80	120	150	200	300	400	500	700	1000	1500	2000	3000	4000
Regenerating Heater	KW	3	3	3.5	3.5	4	5.4	7.2	7.2	10	10	15	20	20	32	40
Regenerating Blower	KW	0.18	0.18	0.18	0.18	0.37	0.37	0.75	0.75	1.5	1.5	2.2	5.5	5.5	9	5.5*2
Process Blower	KW	0.18	0.37	0.75	0.75	1.5	1.5	2.2	3.8	5.5	5.5	9	9*2	13*2	13*3	13*4
Pipe Diameter	Inch	2	2	2	2	2.5	2.5	3	3	4	4	5	6	8	8	12
Dimensions:
H	mm	1200	1200	1200	1330	1330	1500	1650	1750	1750	1750	2000	2060	2062	2240	2060
W	mm	520	520	520	620	620	730	730	850	850	900	1300	1410	1410	2035	2075
D	mm	750	750	750	860	860	980	980	1150	1150	1300	1650	1800	2150	2150	2250
Weight	Kg	120	130	140	170	210	265	320	330	430	450	700	1010	1300	1600	2200

Please excuse for not note if some specifications of products are changed!

Note：
1）The standard power supply is 3Ø 380V 50Hz. Other power supply is available.

2) Dew-point monitor for random check is available for option3) PLC control plus LCD touch screen is available for option.

Honeycomb Dehumidifier

Application:

AMD-H Series Honeycomb Dehumidifiers are mainly used to dehumidify hygroscopic engineering plastic material like PA, PC, PBT, PET, ABS, etc. This machine should be cooperated with AMD-KG series hopper dryer. The honeycomb dehumidifier can supply drying air with dewpoint below than -40℃.

Features:

P.I.D temperature controller insures a high accuracy regenerating temperature.

Equipped with air filter to keep honeycomb rotor away from pollution of material dust.

Overload protection device for air pump, over-heat protection, phase reversal protection insure machine working safely and stably.

Compact structure with nice appearance, easy to operate.

Fixed with wheels, easy to move.
