Product Name:

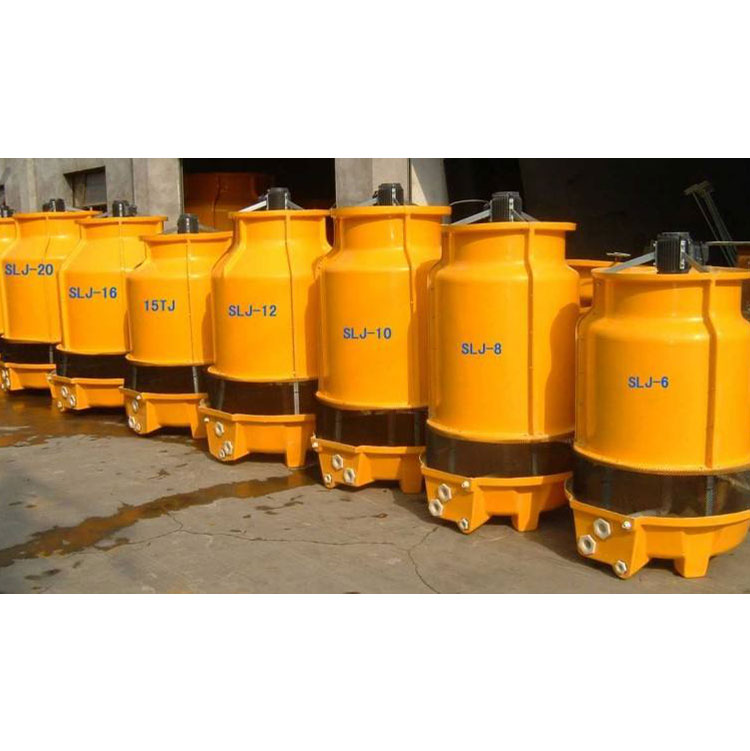

Water Cooling Tower

Model No.:

AMC-6T AMC-8T AMC-10T AMC-12T AMC-16T AMC-20T AMC-25T AMC-30T AMC-40T AMC-50T AMC-60T AMC-70T AMC-80T AMC-100T AMC-125T AMC-135T AMC-150T AMC-175T AMC-200T AMC-250T AMC-300T AMC-350T


Product details

Specification:

ModelFlow Rate(m³/h))Inlet WaterPressure(Kpa)Measurement (mm)Fan Diameter(mm)Motor Power( KW )Inlet PipeDiameter  (mm)Outlet PipeDiameter (mm)



HeightDiameter



AMC-6T619.615007304000.184040
AMC-8T819.615509505000.184040
AMC-10T1019.616509505000.184040
AMC-12T1219.6170011505500.254050
AMC-16T1619.6185011506000.254050
AMC-20T2025195013507000.375065
AMC-25T2525205014007000.375065
AMC-30T3027220015407300.555065
AMC-40T4027230016008000.755065
AMC-50T5027255019009001.180100
AMC-60T60282650210012001.580100
AMC-70T70282650210012001.580100
AMC-80T80282750235015003100125
AMC-100T100292850290015003125150
AMC-125T125292850290015003125150
AMC-135T135293615319018003135150
AMC-150T150343805378020004150200
AMC-175T180343900378020004150200
AMC-200T200354595446028005.5200250
AMC-250T250354610446028005.5200250
AMC-300T300395450470534007.5250300
AMC-350T350395450520534007.5250300

Please excuse for not note if some specifications of products are changed.


Note:

1)"√"is standard configuration," O " is optional to purchase.

2) V-type rotating blades are standard type for AMG-600G/800G/800G+/1000G.

F-type flat rotating blades are standard type for AMG-400G and AMG-500G.

C-type claw rotating blades is optional to purchase.

3)The maximum crushing output depends on the screen diameter, material quality and feeding frequency.

4) The screen mesh diameter can be made according to customers’ request.

5)The running noise depends on varied shredding material.

6)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
