Product Name:

Euro-type Vacuum Autoloader

Model No.:

AML-300U


Product details

Specification:

ModelMotorConveying  Capacity (Kg/h)Hopper  Capacity (L)Conveying  Pipe diameter (mm)Dimensions(mm)Weight(Kg)

TypePower




AML-300UCarbon Brush1.5HP/1Phase3006Ø38550x 400 x35020

Please excuse for not note if some specifications of products are changed!


Note:
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage for AML-300U is 1Ø 220V 50/60Hz.

Euro-type Vacuum Autoloader

Application:

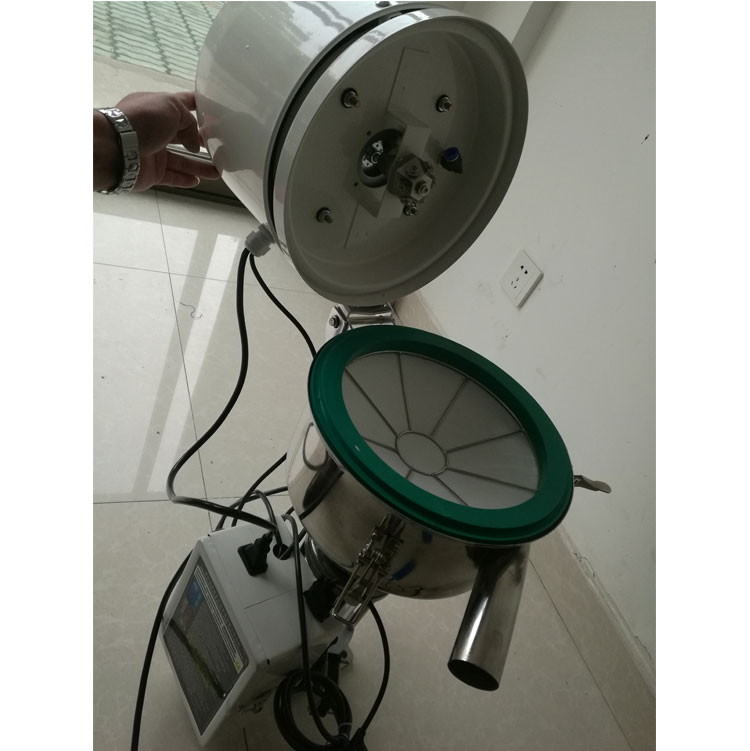

AML-300U Euro-type plastic vacuum autoloader are mainly used to load plastic granules material and plastic powder material. AML-300U hopper loader equipped with high capacity suction motor, auto-clean function, high pressure blowing nozzle, 1200Mn polyester fiber filter, PLC controller and manual operation panel. AML Series hopper loader machine is easy for operation and maintenance.


Features:

* Stainless steel hopper and European type appearance.

* AML-300U. is equipped with High-speed carbon-brush motor with strong suction force.

* Microprocessor controller for ease of operation and has multiple alarm indicators.

* Equipped with emote controller for convenient setting and operation.

* Photoelectric hopper design is available for option.
