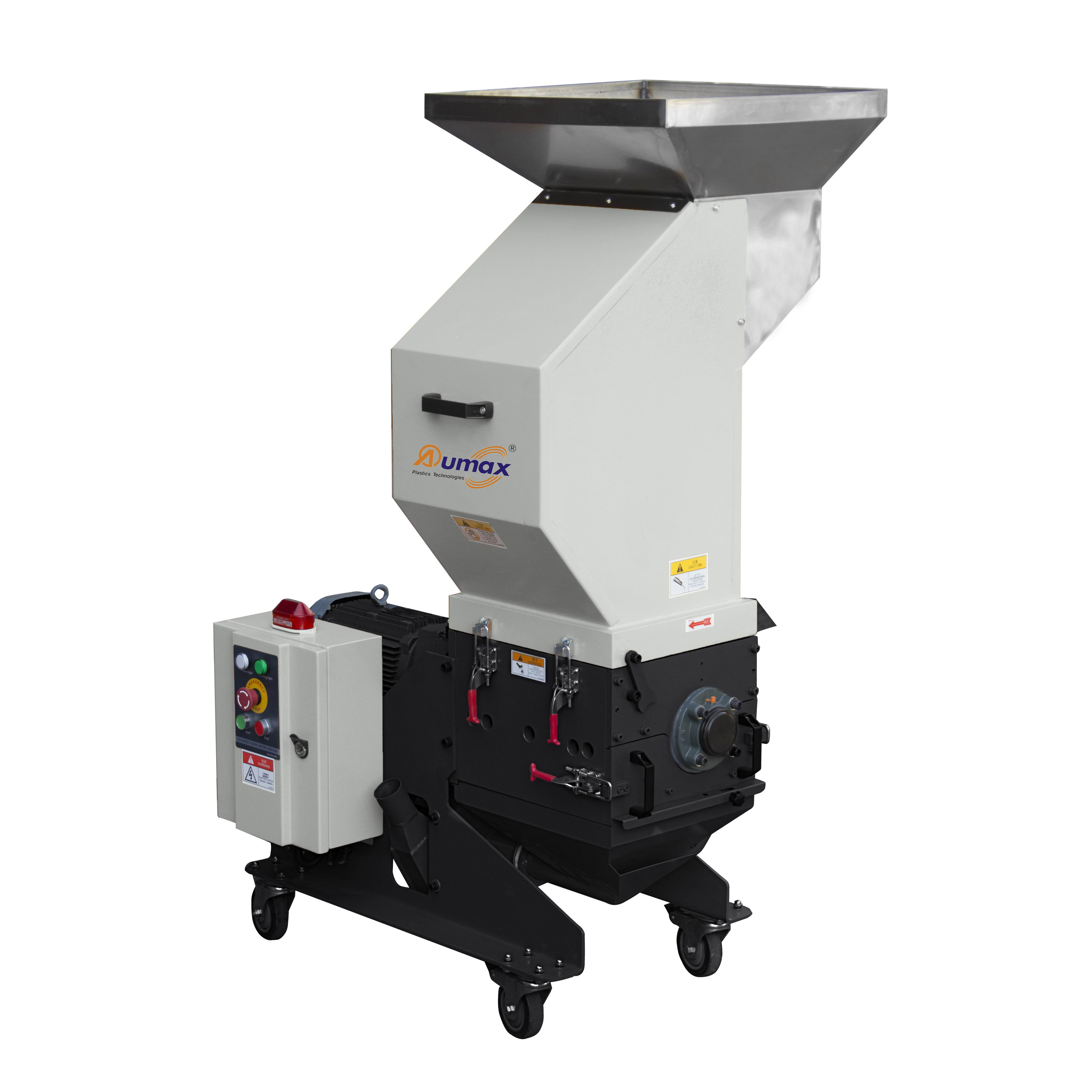

Slow-speed Screenless Granulator
AMG-300E AMG-400E AMG-500E Low speed plastic granulator are sepcialy for plastic materials.
The slow speed granulators work with low noise, low dust and easy to be operated.
Product details
Specification:
Name | Slow Speed Screenless Granulator | ||||
Model | AMG-300E | AMG-400E | AMG-500E | ||
Power | kw | 1.5 | 2.2 | 2.2 | |
Rotor Speed | rpm | 38 | 38 | 38 | |
Rotating Blades(Claw Blades) | pcs | 2 | 3 | 4 | |
Rotating Blades(Teeth Blades) | pcs | 3 | 4 | 5 | |
Fixed Blades | pcs | 7 | 9 | 11 | |
Cutting Chamber Size | mm | 275x300 | 275x400 | 275x500 | |
Output | kg/h | 15~20 | 30~40 | 40~50 | |
Noise | dB(A) | 60~75 | 60~75 | 60~75 | |
Blower Conveying | √ | √ | √ | ||
Cyclone | √ | √ | √ | ||
Proportional Valve | O | O | O | ||
Manual Box | O | O | O | ||
Weight | kg | 350 | 400 | 480 | |
Dimensions: | |||||
L | mm | 970 | 1120 | 1230 | |
W | mm | 620 | 620 | 620 | |
H | mm | 1400 | 1500 | 1500 |
Please excuse for not note if some specifications of products are changed!
Note:
1)"√"is standard configuration; "O" is optional to purchase.
2) The maximum output capacity depends on material quality and specific gravity.
3) The noise depends on different material features and hardness.
4)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
AMG-E Series Blades
Application:
AMG-E Series slow speed beside-the-press screenless granulators ( crushers) are suitable to granulate hard and thick materials, especially for high transparent material like PET, PE, PC, acrylic and plexiglass, etc. This series plastic crushing machine works in super low speed to crush material into symmetrical granules with few dusts. It can be installed beside injection molding machine for instant recycling of material.
Features:
Low power, low noise, low dust.
Claw blades for cursory crushing and teeth blades for refined crushing.
High efficiency gear motor with high performance and long life.
Safety switch to protect people, overload device to protect motor.
Fixed with wheels, easy to move.
