Product Name:

Hopper Dryer

Model No.:

AMD-12KG AMD-25KG AMD-50KG AMD-75KG AMD-100KG AMD-150KG AMD-200KG AMD-300KG AMD-400KG AMD-600KG

Inquire Now Next Product

Product details

Specification:

Name		Plastic Hopper Dryer/ Hot Air Dryer
Model		AMD-12KG	AMD-25KG	AMD-50KG	AMD-75KG	RMD-100KG	AMD-150KG	AMD-200KG	AMD-300KG	AMD-400KG	AMD-600KG
Material Loading	kg	12	25	50	75	100	150	200	300	400	600
Heat Power	kw	1.5	3.0	4.0	4.0	5.5	6.0	12.0	15.0	18.0	22.0
Blower Power	W	90	90	200	200	250	250	400	400	400	960
Common Base	-	√	√	√	√	√	√	√	√	√	√
Magnetic Base	-	/	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ
24 hoursTimer	-	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ
Double-layer	-	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ	Ｏ
Weight	kg	20	25	32	35	55	60	150	160	230	250
External size mm
W		650	750	850	850	970	970	1250	1250	1400	1400
L		350	400	500	550	600	600	800	800	900	950
H		750	950	1100	1310	1150	1700	1570	1900	1900	2100

Please excuse for not note if some specifications of products are changed.

Note：
1）"√"is standard configuration; "Ｏ" is optional to purchase.

2) The standard power supply is 3Ø 380V 50Hz. Other power supply is available.

Hopper Dryer

Application:

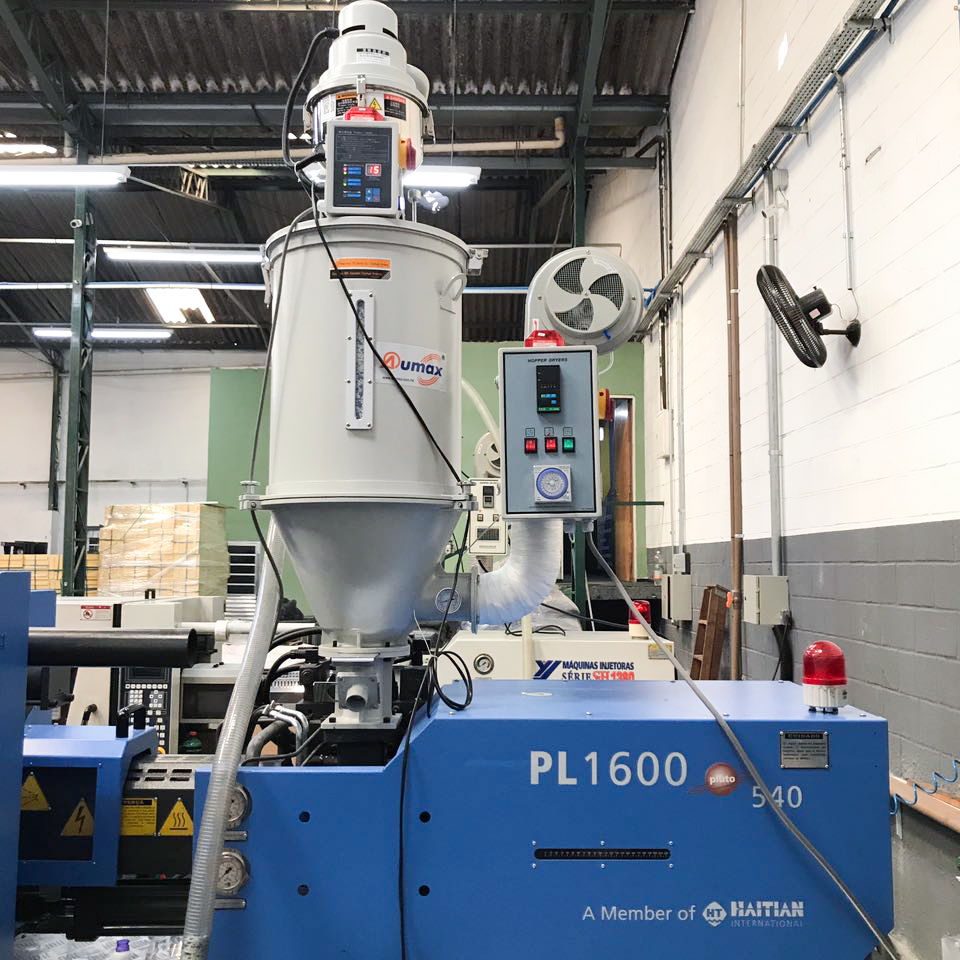

AMD-KG Series plastic hopper dryers are economic equipment to dry plastic material before molding process. Hopper dryer can dry various plastic material humidified during packing, transportation and recycling. The machines can be installed directly on plastic injection molding machine, blowing molding machine and extruder machine.

Features:

Compact structure with nice appearance.

High accuracy temperature controller, easy to operate.

High efficiency fans with high performance and long life.

Stainless steel hopper keep material without pollution.

Transparent window to check material storage.

Separate designed structure, easy to clean and change material.

Magnet grid and magnetic base is optional for purchasing.

A type and L type floor stand frame and suction box are optional.

Cyclone dust separator, exhaust air filter, hot air recycler are optional.
